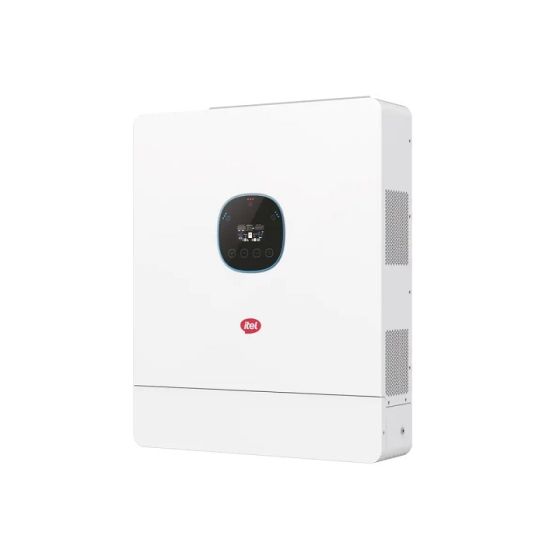

itel 8kW/48v Inverter Hybrid 48V IP54 1Phase IPV-8K48T+ WiFi
Brand
itel
Special Price
NGN 894,493.00
Regular Price
NGN 2,256,493.00
In stock
SKU
IT-IPV-8K48T-WiFi
itel 8kW/48v Inverter Hybrid 48V IP54 1Phase IPV-8K48T+ WiFi
| Weight | 151203466444.7 kg |
|---|---|
| Dimensions | 12 × 34.66 × 44.47 cm |
| Model Type |
IPV-12K48U |
| MPPT Tracking Efficiency |
99.5% |
| Max. Battery Mode Conversion Efficiency |
95% |
| Max. PV Input Power |
16000W |
| Max. PV Input Voltage |
500V |
| Start-Up Voltage |
75V |
| MPPT Voltage Range |
85V~450V |
| Max. Input Current |
27A |
| MPP Trackers |
2 |
| Max. Grid Input Voltage |
380Vrms |
| Nominal Voltage |
220VAC/230VAC/240VAC |
| Input Voltage Range |
90~280VAC |
| Max. AC Input Current |
90A (by pass) |
| Nominal Operating Frequency |
50Hz/60Hz |
| THDi |
<3% |
| Nominal AC Output Power |
12kW / 12000W |
| Max. Output Apparent Power |
12KVA / 12000VA |
| Nominal AC Output Voltage |
220/230/240VAC |
| Total Voltage Harmonic Distortion |
<3% |
| Nominal AC Frenquency |
50Hz |
| Switch Time |
10mS(UPS);20mS(Applicances) |
| Surge Power |
24000VA @ 5s / 24KVA @ 5s |
| Overload Capacity |
105%-150%@10S,150%-200%@5S |
| Battery Type |
Lead-acid/Li-ion/User Defined |
| Rated Voltage |
48V |
| Battery Voltage Range |
40V-60V |
| Max. MPPT Charging Current |
210A |
| Max. Mains/Generator Charging Current |
210A |
| Max. Discharging Current |
250A |
| Dimensions D*W*H (mm) |
125mm*525mm*630mm |
| Net Weight |
28.5kg |
| Operating Temperature Range |
-10-55℃, >45℃ Power Derating |
| Max. Operating Altitude |
4000m, >2000m Power Derating |
| Communication |
WIFI/RS485/CAN/RS232/Dry Contact |
| Diesel Generator Support |
Yes, External Contactor |
| Dry Contact Support |
Yes |
| Number of Parallel |
1Phase: 6 |
| Cooling Method |
Intelligent Fan Cooling |
| Noise |
<60dB |
| Authentication Level |
IEC62109-1, IEC62109-2, IEC61683 |
| Ingress Protection |
IP54 |
| Overvoltage Protection |
Yes |
| Overload Protection |
Yes |
| Short Circuit Protection |
Yes |
| Smart Load Support |
Yes, External Contactor |
| Over Temperature Protection |
Yes |
| Surge Protection |
DC: TypeIII, AC: TypeIII |
| Product Name | itel 8kW/48v Inverter Hybrid 48V IP54 1Phase IPV-8K48T+ WiFi |
|---|---|
| Visibility | Catalog, Search |
| Color | White |
| Manufacturer | itel |
