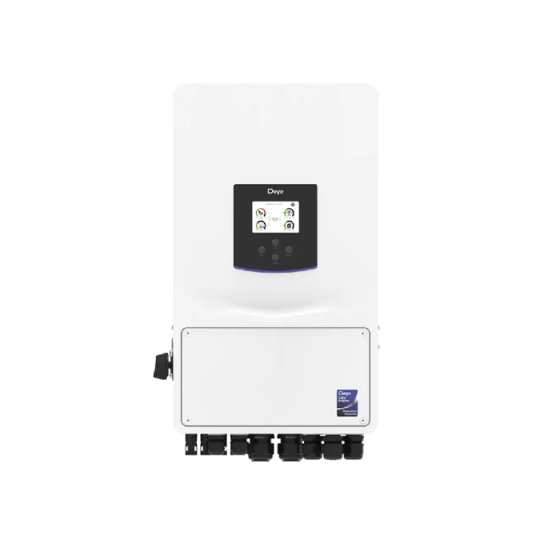

Deye SUN 12kW Three Phase Hybrid Inverter - SUN-12K-SG06LP1-E

Brand

Deye

Be the first to review this product

Special Price ₦2,025,000.00 Regular Price ₦4,305,000.00

In stock

SKU

SUN-12K-SG06LP1-E

7–12kW single-phase range
Up to 24kW PV access power
40–60V battery compatibility
Up to 250A charging/discharging
Three MPPT trackers on 12kW model
Up to 16 units in parallel
2× off-grid peak power for 10s
97.6% efficiency and IP65 protection

Details

More Information

Reviews

Manufacture

Product Description

Model	SUN-7K-SG06 LP1-EU-CM3	SUN-7.6K-SG06 LP1-EU-CM3	SUN-8K-SG06 LP1-EU-CM3	SUN-10K-SG06 LP1-EU-CM3	SUN-12K-SG06 LP1-EU-CM3
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range (V)	40-60
Max. Charging/Discharging Current (A)	175	185	185	220	250
Charging Strategy for Li-ion Battery	Self-adaption to BMS
Number of Battery Input	1
PV String Input Data
Max. PV access power (W)	14000	15200	16000	20000	24000
Max. PV Input Power (W)	11200	12160	12800	16000	19200
Max. PV Input Voltage (V)	500
Start-up Voltage (V)	125
MPPT Voltage Range (V)	150-425
Rated PV Input Voltage (V)	370
Max. Operating PV Input Current (A)	36+18+18	34+27+27	34+27+27	34+27+27	36+36+18
Max. Input Short-Circuit Current (A)	54+27+27	54+27+27	54+27+27	54+27+27	54+54+27
No. of MPP Trackers/ No. of Strings MPP Tracker	3/2+1+1	3/2+2+1	3/2+2+1	3/2+2+1	3/2+2+1
AC Input/Output Data
Rated AC Input/Output Active Power (W)	7000	7600	8000	10000	12000
Max. AC Input/Output Apparent Power (VA)	7700	8360	8800	11000	13200
Rated AC Input/Output Current (A)	31.9/30.5	34.6/33.1	36.4/34.8	45.5/43.5	54.6/52.2
Max. AC Input/Output Current (A)	35.0/33.5	38/36.4	40/38.3	50/47.9	60/57.4
Max. Continuous AC Passthrough (grid to load) (A)	65				70
Peak Power (off-grid) (W)	2 times of rated power, 10s
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Rated input/output voltage	220/230V 0.85Un-1.1Un L+N+PE
Rated Input/Output Grid Frequency/Range(Hz)	50/45-55, 60/55-65
Total Current Harmonic Distortion THDi	<3% (of nominal power)
DC Injection Current	<0.5% In
Efficiency
Max. Efficiency	97.6%
Euro Efficiency	96.5%
MPPT Efficiency	>99%

The Deye SUN-(7-12)K-SG06LP1-EU-CM3 is a scalable single-phase energy solution for high-demand homes and light commercial installations. The series includes 7kW, 7.6kW, 8kW, 10kW and 12kW models, allowing installers to match system capacity to different load and storage requirements. At the top of the range, the **12kw solar inverter** delivers 12,000W rated AC power and supports up to 24,000W of PV access power.

Designed for 40–60V lead-acid or lithium-ion batteries, the inverter provides self-adaptive BMS communication for compatible lithium systems. Charging and discharging current reaches 250A on the 12kW model, supporting high-capacity battery storage and rapid energy transfer. Six programmable charging and discharging periods help users manage time-of-use tariffs and improve solar self-consumption.

Three MPPT trackers on the 12kW solar inverter support flexible array design across different roof orientations. AC coupling also makes the series suitable for upgrading existing solar installations. Up to 16 units can operate in parallel for on-grid or off-grid systems, while generator input enables energy storage from a diesel generator.

For backup applications, off-grid peak power reaches twice the rated output for 10 seconds, helping start demanding appliances and motor loads. Maximum efficiency reaches 97.6%, with MPPT efficiency above 99%. A color touch LCD, Wi-Fi, RS485 and CAN communication simplify system control and monitoring. IP65 protection, intelligent air cooling, noise below 45dB and integrated electrical protection support reliable operation in demanding environments.
