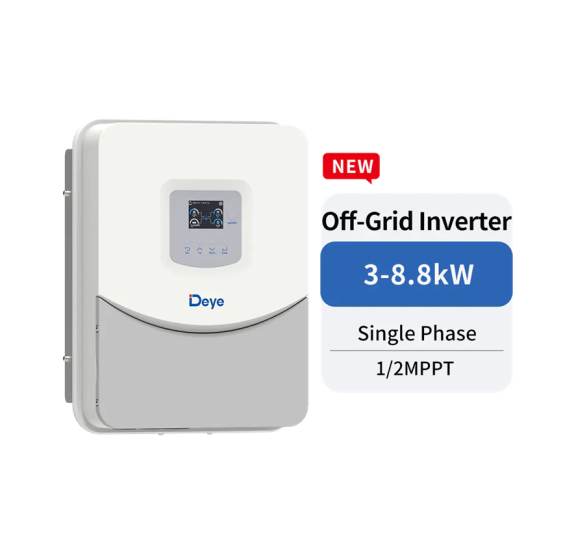

Deye SUN 6.6kW Single Phase Hybrid Inverter - SUN-6.6K-OG03LP1-EU-AM1/AM2

Brand

Deye

Be the first to review this product

Special Price ₦526,500.00 Regular Price ₦870,000.00

In stock

SKU

SUN-6.6K-OG03LP1-EU-AM1/AM2

Deye SUN 6.6kW Single Phase Hybrid Inverter - SUN-6.6K-OG03LP1-EU-AM1/AM2

Lightweight Design for Easy Installation
Max. 190A Charge/Discharge Current
2× PV Oversizing Capability
Compatible with High-Current PV Modules
200% Peak Output
Up to 97.6% Conversion Efficiency
4ms On/Off-Grid Switching
Max. 16 Units in Parallel
IP65 Protection Rating
Noise＜46 dB

Details

More Information

Reviews

Manufacture

SUN-(3-8.8)K-OG03LP1-EU-AM1/AM2

Model	SUN3K-OG03 LP1-24-EU-AM1	SUN-3K-OG03LP1-EU-AM1	SUN-3.6K-OG03LP1-EU-AM1	SUN-5K-OG03LP1-EU-AM2	SUN-6.6K-OG03LP1-EU-AM2	SUN-8.8K-OG03LP1-EU-AM2
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range (V)	20-30	40-60
Max. Charging/Discharging Current (A)	135	70	90	120	140	190
Charging Strategy for Li-ion Battery	Self-adaption to BMS
Number of Battery Input	1
PV String Input Data
Max. PV Access Power (W)	6000		7200	10000	13200	17600
Max. PV Input Power (W)	4800		5760	8000	10560	14080
Max. PV Input Voltage (V）	500
Start-up Voltage (V)	125
MPPT Voltage Range(V）	150-425
Rated PV Input Voltage (V)	370
Max. Operating PV Input Current (A）	18			18+18		36+18
Max. Input Short-Circuit Current (A)	27			27+27		54+27
No. of MPP Trackers/No. of Strings MPP Tracker	1/1			2/1+1
AC Output Data
Rated AC Output Power (VA/W)	3000		3600	5000	6600	8800
Max. AC Output Power (VA/W)	3000		3600	5000	6600	8800
Max. AC Output Current (A)	13.1		15.7	21.8	28.7	38.3
Rated AC Output Current (A)	13.1		15.7	21.8	28.7	39.3
Peak Power (W）	2 times of rated power, 10s
Rated Output Voltage (V)	230 L+N+PE
Rated Output Frequency	50Hz / 60Hz
Output Voltage Waveform	Pure Sine Wave
Total Current Harmonic Distortion THDi	＜3%
AC Input Date(Grid and Generator)
Max. Input Power to Battery (W)	3000		3600	5000	6600	8800
Rated Input Voltage (V）	230
Rated Input Frequency	50Hz / 60Hz
Gird Input Current (A)	35					50
Generator Input Current (A)	35					50
Eﬃciency
Max. Eﬃciency	97.6%
Euro Eﬃciency	96.5%
MPPT Eﬃciency	>99%
Equipment Protection
Integrated	DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring,Insulation Impedance Detection
Surge Protection Level	TYPE II(DC), TYPE II(AC)
Interface
LCD/LED Display	LCD
Communication Interface	Wi-Fi&BT,RS485,CAN
General Data
Operating Temperature Range (℃)	-40 to +60℃, >45℃ Derating
Permissible Ambient Humidity	0-100%
Permissible Altitude	3000m
Noise (dB)	<46
Ingress Protection(IP) Rating	IP 65
Inverter Topology	Non-Isolated (solar), Isolated (battery)
Over Voltage Category	OVC II(DC), OVC III(AC)
Cabinet Size (WxHxD mm)	323×424×176 (Excluding Connectors and Brackets)
Weight (kg）	8.6
Type of Cooling	Intelligent Air Cooling
Warranty	5 Years / Up to 10 Years* *Warranty period varies by installation country. Refer to the Warranty Policy for details.
Safety / EMC Standard	IEC62109-1/2, EN61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-6-4
