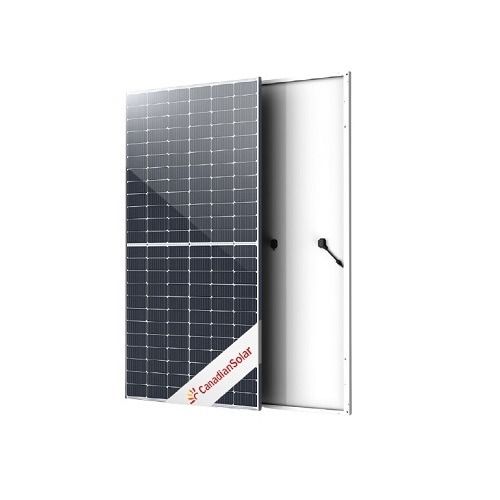

Canadian Solar 460W Monocrystalline Solar Panel
Brand
CanadianSolarCanadian Solar 460W Monocrystalline Solar Panel
Canadian Solar 460 Watt
Product Description
MECHANICAL SPECIFICATION |
|
Format |
1903*1134*30mm |
Weight |
24.2kg±5% |
Cell |
120 monocrystalline half cell |
Junction Box |
IP68, 3 bypass diodes |
Cable |
4 mm2 (IEC), 12 AWG (UL) |
Connector |
T6 or MC4 or MC4-EVO2 or MC4-EVO2A |
ELECTRICAL DATA | STC* |
||||
CS6L |
450MS |
455MS |
460MS |
465MS |
Nominal Max. Power (Pmax) |
450W |
455W |
460W |
465W |
Opt. Operating Voltage (Vmp) |
34.4V |
34.6V |
34.8V |
35.0V |
Opt. Operating Current (Imp) |
13.10A |
13.17A |
13.24A |
13.30A |
Open Circuit Voltage (Voc) |
41.0V |
41.2V |
41.4V |
41.6V |
Short Circuit Current (Isc) |
13.90A |
13.95A |
14.00A |
14.09A |
Module Efficiency |
20.9% |
21.1% |
21.3% |
21.5% |
Operating Temperature |
-40°C ~ +85°C |
|||
Max. System Voltage |
1500V (IEC/UL) or 1000V (IEC/UL) |
|||
Module Fire Performance |
TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730 1000V) or CLASS C (IEC 61730) |
|||
Max. Series Fuse Rating |
25 A |
|||
Application Classification |
Class A |
|||
Power Tolerance |
0 ~ + 10 W |
|||
* Under Standard Test Conditions (STC) of irradiance of 1000 W/m2, spectrum AM 1.5 and cell temperature of 25°C. Measurement uncertainty: ±3 % (Pmax) |
Color | Black |
---|---|
Manufacturer | CanadianSolar |
